Ownership and the String Type

Performant Software Systems with Rust — Lecture 4

Baochun Li, Professor
Department of Electrical and Computer Engineering
University of Toronto

The Dreaded error[E0382]

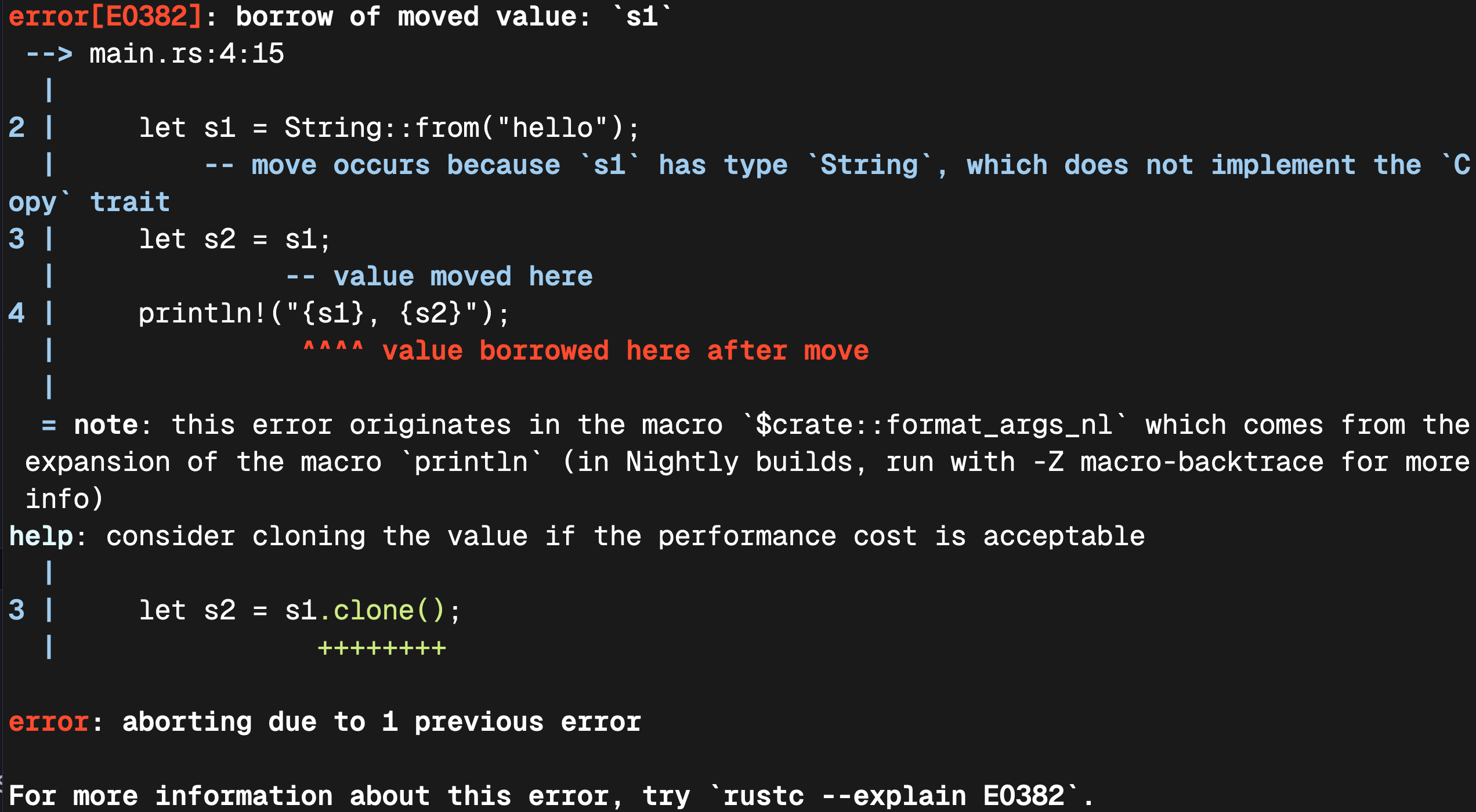

error[E0382]: borrow of moved value

Let’s start from the very beginning

The Stack

• Variables and parameters on the stack are local to the function scope they are declared in

• Function calls proceed in a last-in, first-out order

  • When we call a function, we push its stack frame onto the stack
  • When we return from it, we pop its stack frame off

• The stack is fast — we only need to move the stack pointer

The Heap

• The heap is where dynamic memory is allocated — we need to explicitly request and release memory

  • A request (with malloc() in C or new in C++) returns a pointer to allocated memory on the heap

  • This pointer can be stored in a variable on the stack

  • A release (with free() in C or delete in C++) deallocates the memory at a pointer

• Slower than the stack because we need to search for a block of memory that is large enough

The stack grows downwards to lower memory addresses, and the heap grows upwards to higher memory addresses

Ownership Rules

• Each value in Rust has a variable that is its owner

• There can only be one owner at a time

• When the owner goes out of scope, the value will be dropped

Revisiting Variable Scope

{   // s is not valid here, it’s not yet declared
    let s = "hello";
    // s comes into scope, it is valid from this point forward
    println!("{s}");
    // s remains valid until it goes out of scope
}   // this scope is now over, s is no longer valid

hello

\(\uparrow\) Fun fact: This runtime output is produced by running the code directly when compiling this presentation, with a Jupyter Kernel for Rust.

To continue to study ownership, we need a data type that is stored on the heap

The String Type

• We’ve seen string literals before, but they are immutable

• What if we want to store a string that is unknown at compile time?

    // a mutable String allocated on the heap
    let mut s = String::from("hello");
    s.push_str(", world!"); // appends a literal to an existing String
    println!("{s}");

hello, world!

Allocating and Releasing Strings on the Heap

• We allocated memory for the String s manually using String::from

• When the variable s goes out of scope, the memory is automatically released

Rust vs. C/C++

• In Rust, there is no need to manually call free or delete explicitly
  • Wastes memory if we do it too late (or forget to do it — memory leaks)
  • Invalid memory access if we do it too early
  • Double free if we do it twice, corrupting the memory allocator

Rust vs. Go/JavaScript

• In Rust, there is no need to use a garbage collector to clean up unused memory

• Allocated memory is automatically released once the variable that owns it goes out of scope

{   // s is not valid here, it’s not yet declared
    let mut s = String::from("hello");
    // s comes into scope, it is valid from this point forward
    s.push_str(", world!");
    // s remains valid until it goes out of scope
    println!("{s}");
}   // this scope is now over, s is no longer valid and is `dropped'

Resource Acquisition Is Initialization (RAII) in C++

• Rust’s idea is not new — it is inspired by RAII in C++

• With RAII, resources are acquired in the constructor and released in the destructor of an object

• This is why C++ has smart pointers like std::unique_ptr and std::shared_ptr

• The main difference is

  • Rust doesn’t have new and delete
  • Rust enforces the ownership rules at compile time

Difference Between Scalar Types and Strings

    let x = 5; // bind the value 5 to x
    let y = x; // make a copy of the value in x and bind it to y
    println!("{x}, {y}");

5, 5

    let s1 = String::from("hello");
    let s2 = s1;
    println!("{s1}, {s2}");

?

What Happens When You Copy a String?

Back to Our Example

{
    let s1 = String::from("hello");
    let s2 = s1;
    println!("{s1}, {s2}");
} // s1 and s2 go out of scope at the same time
// but should both of them be dropped? --- ``double free'' error!

Making a Move

We should make a shallow copy and then invalidate the original variable copied — which is called a move

{
    let s1 = String::from("hello");
    let s2 = s1; // s1 is moved into s2, and is no longer valid
    println!("{s1}, {s2}"); // error: borrow of moved value: `s1`
} // s1 and s2 go out of scope at the same time
// but s1 does not need to be freed, as it is no longer valid

What happens with this code?

let mut s = String::from("hello");
s = String::from("ahoy");

println!("{s}, world!");

Making a Clone

{
    let s1 = String::from("hello");
    let s2 = s1.clone(); // s2 has a deep copy of s1
    println!("{s1}, {s2}"); // no more errors
} // s1 and s2 go out of scope at the same time, are are both freed

Back to Our Example Again

    let x = 5; // bind the value 5 to x
    let y = x; // make a copy of the value in x and bind it to y
    println!("{x}, {y}");

5, 5

We haven’t called clone() — why do we make a copy of x here?

• x is an integer on the stack only, and such stack-only data is not expensive to copy

• There is no reason to invalidate x and move it into y here

• Copy trait is implemented for all types that are stored on the stack only, just like integers

  • If a type implements the Copy trait, variables that use it do not move, but rather are trivially copied
  • If a type implements the Drop trait, it cannot implement the Copy trait

Passing a Value to a Function Can Transfer Ownership

fn main() {
    let s = String::from("hello"); // s comes into scope
    takes_ownership(s); // s's value moves into the function,
    // s is no longer valid here
    let x = 5; // x comes into scope
    makes_copy(x); // x is an integer that implements the Copy trait,
                   // copies into the function and okay to use later
} // both s and x goes out of scope
// Because s's value was moved, nothing special happens

fn takes_ownership(s: String) {
    println!("{s}");
} // s goes out of scope and is dropped

fn makes_copy(n: i32) {
    println!("{n}");
} // n goes out of scope, and nothing special happens

Returning a Value from a Function Can Also Transfer Ownership

fn main() {
    let s1 = gives_ownership(); // moves its return value into s1
    let s2 = String::from("hello");
    let s3 = takes_and_gives_back(s2);
    // s2 moved into the function; its return value moved into s3
} // s1 and s3 are dropped, s2 was moved and nothing happens

fn gives_ownership() -> String {
    let s = String::from("yours");
    s // moves `s` out of the function
}

fn takes_and_gives_back(s: String) -> String {
    s // moves into the function and then out of the function
}

Allowing a Function to Use a Value Without Taking Ownership

fn main() {
    let s1 = String::from("hello");
    let (s1, len) = calculate_length(s1);
    println!("The length of '{s1}' is {len}.");
}

fn calculate_length(s: String) -> (String, usize) {
    (s, s.len())
}

Any issues you can see here?

Demo: error[E0382]: borrow of moved value

Allowing a Function to Use a Value Without Taking Ownership

fn main() {
    let s1 = String::from("hello");
    let (s1, len) = calculate_length(s1);
    println!("The length of '{s1}' is {len}.");
}

fn calculate_length(s: String) -> (String, usize) {
    let length = s.len();
    (s, length)
}

The length of 'hello' is 5.

References and Borrowing

• References allow you to borrow a value without taking ownership of it
  • Represented by &
  • Can derefence them with *
  • Unlike C pointers, they can never be null or “dangling”

References and Borrowing

fn main() {
    let s1 = String::from("hello");
    let len = calculate_length(&s1); // pass a reference to s1
    println!("The length of '{s1}' is {len}.");
}

fn calculate_length(s: &String) -> usize {
    s.len()
} // Here, s goes out of scope. But because s does not have ownership of what
  // it refers to, the String is not dropped.

Trying to Modify What We Borrow

fn main() {
    let s = String::from("hello");

    change(&s);
    println!("{s}");
}

fn change(some_string: &String) {
    some_string.push_str(", world");
}

Demo: error[E0596]: cannot borrow *some_string as mutable, as it is behind a & reference

Mutable References

• Mutable references allow you to change the value of a reference
  • Represented by &mut

fn main() {
    let mut s = String::from("hello");

    change(&mut s); // pass a mutable reference to s
    println!("{s}");
}

fn change(some_string: &mut String) { // take a mutable reference
    some_string.push_str(", world");
}

hello, world

Can we create two mutable references to the same value?

let mut s = String::from("hello");

let r1 = &mut s;
let r2 = &mut s;

println!("{}, {}", r1, r2);

Demo: error[E0499]: cannot borrow s as mutable more than once at a time

Can we have one mutable reference and an immutable reference?

let mut s = String::from("hello");

let r1 = &s; // no problem
let r2 = &s; // no problem
let r3 = &mut s; // error[E0502]

println!("{}, {}, and {}", r1, r2, r3);

Demo: error[E0502]: cannot borrow s as mutable because it is also borrowed as immutable

Mutable References: House Rules

• Cannot borrow as a mutable reference more than once

• Cannot have a mutable reference while also having an immutable reference

• Can have multiple immutable references at the same time

• Summary: Can either have one mutable reference or multiple immutable references, but not both

• But why?

Data Races: The Most Elusive Bugs in Concurrent Software

• Two or more pointers access the same data at the same time
• At least one of the pointers is being used to write to the data
• There’s no mechanism being used to synchronize access to the data

Data races in Rust are compile-time errors

Fixing the Compile-Time Error

let mut s = String::from("hello");

let r1 = &s; // no problem
let r2 = &s; // no problem
println!("{r1} and {r2}");
// variables r1 and r2 will not be used after this point

let r3 = &mut s; // no problem
println!("{r3}");

hello and hello
hello

()

Dangling References

fn main() {
    let reference_to_nothing = dangle();
}

fn dangle() -> &String { // dangle returns a reference to a String
    let s = String::from("hello"); // s is a new String
    &s // we return a reference to the String, s
}
// s goes out of scope, and is dropped.

Demo: error[E0106]: missing lifetime specifier

Fixing the Compile-Time Error

fn no_dangle() -> String {
    let s = String::from("hello");

    s // ownership is moved out, nothing is dropped
}

References: House Rules

• References must always be valid
• At any given time, you can have either one mutable reference or any number of immutable references
• Data will not go out of scope before the reference to the data does

Problem: Write a function that takes a string of words, and returns the first word it finds in the string

fn first_word(s: &String) -> ?

Returning an index of the end of the first word as an integer?

Let’s try this idea.

fn first_word(s: &String) -> usize {
    let bytes = s.as_bytes(); // convert to an array of bytes

    // .iter(): an iterator that returns each element
    // .enumerate(): returns each element as a tuple
    // (index, reference to element)
    for (i, &item) in bytes.iter().enumerate() {
        if item == b' ' {
            return i;
        }
    }

    s.len()
}

But there is no guarantee that the index returned will be valid in the future

fn main() {
    let mut s = String::from("hello world");

    let word = first_word(&s); // word will get the value 5

    s.clear(); // this empties s, making it equal to ""

    // `word` still has the value 5 here, but there's no more
    // string that we could meaningfully use the value 5 with.
    // `word` is now invalid.
}

String Slices

• &str: Immutable references to a part of a String
• Created using a range within square brackets
  • [starting_index..ending_index]

let s = String::from("hello");
let slice = &s[0..2];
let slice = &s[..2];
let slice = &s[3..];
let slice = &s[..];

• Stored internally with the starting reference and length of the slice

String Literals as Slices

let s = "Hello, world!"; // the type of s is &str

Fixing Our Solution to first_word()

fn first_word(s: &String) -> &str {
    let bytes = s.as_bytes();

    for (i, &item) in bytes.iter().enumerate() {
        if item == b' ' {
            return &s[0..i];
        }
    }

    &s[..]
}

fn main() {
    let mut s = String::from("hello world");
    let word = first_word(&s);
    s.clear(); // compile-time error[E0502]
    println!("the first word is: {word}");
}

Demo: error[E0502]: cannot borrow s as mutable because it is also borrowed as immutable

String Slices as Parameters

Instead of &String, we can use &str as the parameter type

fn first_word(s: &str) -> &str {

String Slices as Parameters

fn main() {
    let my_string = String::from("hello world");

    // works on slices of `String`s (partial or whole)
    let word = first_word(&my_string[0..6]);
    let word = first_word(&my_string[..]);
    // also works on references to `String`s, which are
    // equivalent to whole slices of `String`s
    let word = first_word(&my_string);

    let my_string_literal = "hello world";
    // works on slices of string literals (partial or whole)
    let word = first_word(&my_string_literal[0..6]);
    let word = first_word(&my_string_literal[..]);

    // Because string literals are string slices already,
    // this works too, without the slice syntax!
    let word = first_word(my_string_literal);
}

Creating Slices of Collection Types

let a = [1, 2, 3, 4, 5];
let slice = &a[1..3]; // `slice` has a type `&[i32]`
println!("{}", slice == &[2, 3]);

true

()

An in-depth look at the String type

What is a String?

• A vector of bytes

pub struct String {
    vec: Vec<u8>,
}

What is a String?

• UTF-8-encoded and growable

let hello = String::from("السلام عليكم");
let hello = String::from("Dobrý den");
let hello = String::from("Hello");
let hello = String::from("שלום");
let hello = String::from("नमस्ते");
let hello = String::from("こんにちは");
let hello = String::from("안녕하세요");
let hello = String::from("你好");
let hello = String::from("Olá");
let hello = String::from("Здравствуйте");
let hello = String::from("Hola");

Creating and Initializing a New String

let mut s = String::new(); // creates a new, empty string

let s = String::from("hello");

let s = "hello".to_string();

Appending to a String

let mut s1 = String::from("foo");
let s2 = "bar";
s1.push_str(s2); // appends a string slice
println!("s1 is {s1}, s2 is {s2}");

s1 is foobar, s2 is bar

()

let mut s = String::from("lo");
s.push('l'); // appending a single character

Concatenating Strings with +

let s1 = String::from("Hello, ");
let s2 = String::from("world!");
// using deref coearcion to turn `&s2` into `&s2[..]`
let s3 = s1 + &s2;
// s1 has been moved and is no longer valid
println!("{}, {}", s3, s2);

Hello, world!, world!

()

fn add(self, s: &str) -> String {

Concatenating Strings with the format! Macro

let s1 = String::from("tic");
let s2 = String::from("tac");
let s3 = String::from("toe");

let s = format!("{s1}-{s2}-{s3}");
println!("{}", s);

tic-tac-toe

()

Indexing into Strings is Not Allowed

let s1 = String::from("hello");
let h = s1[0];

error[E0277]: the type `str` cannot be indexed by `{integer}`
 --> main.rs:3:16
  |
3 |     let h = s1[0];
  |                ^ string indices are ranges of `usize`
  |
  = help: the trait `SliceIndex<str>` is not implemented for `{integer}`, which is required by `String: Index<_>`
  = note: you can use `.chars().nth()` or `.bytes().nth()`
          for more information, see chapter 8 in The Book: <https://doc.rust-lang.org/book/ch08-02-strings.html#indexing-into-strings>
  = help: the trait `SliceIndex<[_]>` is implemented for `usize`
  = help: for that trait implementation, expected `[_]`, found `str`
  = note: required for `String` to implement `Index<{integer}>`

Strings are encoded internally with UTF-8 — a character can take one or two bytes

Use Slices Instead

let hello = String::from("😀🤗📘");
let s = &hello[0..4];
println!("{}", s);

😀

()

Internal UTF-8 Encoding Values

let hello = String::from("😀🤗📘");
let s = &hello[0..4];

for c in hello.chars() {
    print!("{c} ");
}

for b in s.bytes() {
    println!("{b}");
}

😀 🤗 📘 240
159
152
128

()

Required Additional Reading

The Rust Programming Language, Chapter 4, 8.2
