Computer Organization

Introducing New Instructions

Andreas Moshovos

Spring 2006

Extending/Changing the Datapath

We have seen how to design a complete datapath and control. Now let’s see how we can change this datapath to support new or different instructions. Because our instruction encoding is dense and does not allow for the introduction of new instructions, let’s see how we can implement a different LOAD instruction. So, what if we wanted to *replace* load with the following:

LOAD r1 (r2)+

We first start with the behavioral model of this instruction. This is the programmer’s model, or in other words the way the programmer expects this instruction to behave. As a designer, this model is our contract. We have to design a processor that adheres to this model. This way the programmer can reason about program behavior.

So the behavioral model of the new LOAD is:

1. [R1] = MEM [ [R2] ]

2. [R2] = [R2] + 1

3. [PC] = [PC] + 1

In words, we read R2, use this value as an address to read from memory, the value we read from memory we write into r1. Then we increment r2 by 1. Finally, we increment PC by 1.

Starting from this model let’s see what are the actions that need to take place in the datapath.

Going from the behavioral model to a set of actions that need to take place in the datapath:

A. First we have to read the instruction into the IR

B. For part (1) we need to do the following:

a. Read R2

b. Read from memory using the value read in step (a) as the address

c. Write the value read from memory in (b) into R1

C. For part (2) we need to do the following:

a. Read R2

b. Add 1 to the value read in step (a)

c. Write the value produced in step (c) into register R2

D. For part (3):

a. Read the PC

b. Add 1 to the value read in step (a)

c. Write the value produced in step (c) into the PC.

Now let’s attempt to assign these actions into cycles. Any *valid* assigned into cycles is acceptable. An assigned to cycles is valid if: (i) it maintains the order of actions (i.e., action B.a happens before action B.b), (ii) and as long as the datapath can support the necessary actions.

Let’s focus on part (i) first, that is assign the actions into cycles. The first two cycles are the same for all instruction because in cycle 1 we read the instruction from memory and in cycle 2 the control looks at it and tries to decide what to do next.

CYCLE 1:

IR <-- MEM[ [PC] ] * ACTION A: Read instruction from memory store it in IR

PC <-- [PC] + 1 * ACTIONS D.a through D.c: Increment PC

CYCLE 2:

R1 <-- RF[IR7,6] * NOT NEEDED BY LOAD: Read register R1 (as specified by bits 7 and 6 or the IR)

R2 <-- RF[IR5,4] * ACTION C.a: Read register R2

Note that here we did not yet have time to look at the instruction. So, we are performing two reads that *may* be useful. For loads these are useful but we take these actions for all instructions.

CYCLE 3:

MDR <-- MEM[ [R2] ] * ACTION B.b: read value from memory

CYCLE 4:

RF[IR7,6] <-- [MDR] * ACTION B.c: write value read from memory intro the register file

CYCLE 5:

AluOut <-- R2 + 1 * ACTION C.b: add 1 to the value read in action C.a

CYCLE 6:

RF[IR5,4] <-- AluOut * ACTION C.c: write the value produced in action C.b into R2

This is not the shortest in terms of cycles assignment. We can notice that in CYCLE 3 we can also do C.b:

CYCLE 3:

MDR <-- MEM[ [R2] ] * ACTION B.b: read value from memory

AluOut <-- R2 + 1 * ACTION C.b: add 1 to the value read in action C.a

CYCLE 4:

RF[IR7,6] <-- [MDR] * ACTION B.c: write value read from memory intro the register file

CYCLE 5:

RF[IR5,4] <-- AluOut * ACTION C.c: write the value produced in action C.b into R2

We cannot do B.c and C.c during the same cycle since they both use the register file’s write port (and there is only one of it).

Is the datapath capable of performing all these actions? Yes, except for Action C.c. For this we need to be able to use bits 5,4 or the IR to specify the target register. Our current datapath has regw connected to IR7,6 or to 1:

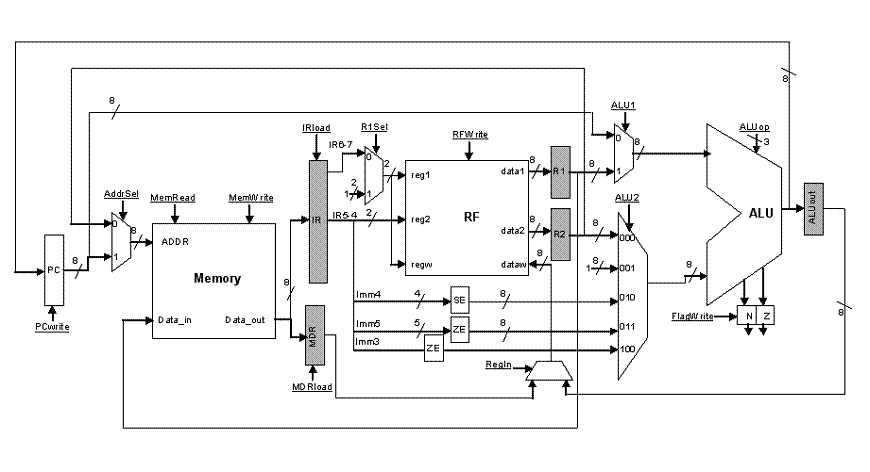

ORIGINAL DATAPATH

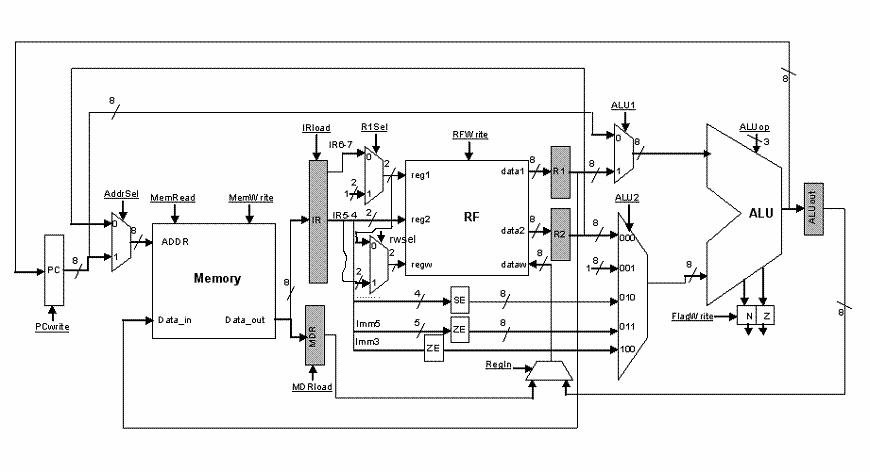

So, we need to introduce the capability of using either IR7,6 or IR5,4 for regw. Here’s the modified datapath:

The new control signal rwsel allows us to either use IR7,6 or IR5,4 for regw.
